3d Scanner
All of Create
This equipment is available to everyone associated with the Department of Architecture, Design, and Media Technology (CREATE).
There is 1 in circulation
AAUX25153

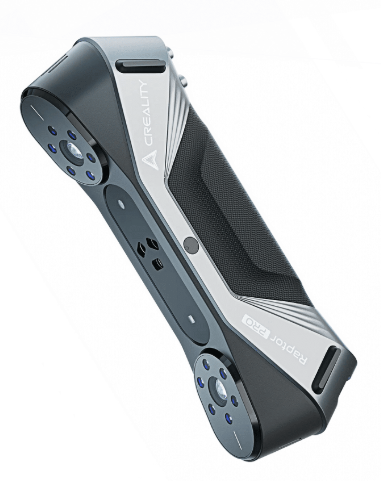

The Raptor Pro from Creality is a professional dual‑mode handheld 3D scanner using blue‑laser lines and NIR structured light for fast, accurate capture.
Achieves up to 0.02 mm precision in blue‑laser mode and scans at 660,000 points/s at 60 fps, suitable for technical parts and large objects alike.
Supports full‑color 24‑bit texture capture and handles scan volumes from a few millimetres to 4 m, making it fit for reverse engineering, inspection, and design workflows
⚠️ KNOWN ISSUE ⚠️
Requires USB 3.0. Once connected to USB 2 or lower the unit must be disconnected from power before recognising USB 3.0 again.
KIT INCLUDES:
- Raptor Pro 3D Scanner
- USB 3.0 Data Cable
- Adapter
- Calibration Plate
- Reflective Markers
- Lanyard
- USB C Adapter
- Cleaning Cloth
- Instruction Manual
- Waterproof Box
